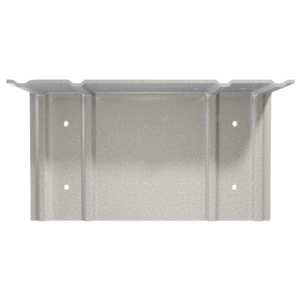

StiffClip® AL (Multi-purpose Angle) by TSN is a versatile, multi-purpose rigid connection for various applications. Pre-drilled holes facilitate quick and accurate fastener placement to structures or framing members. Stiffeners in each angle leg add to overall clip strength. StiffClip® AL is tested to resist loads in three separate directions: horizontal, vertical, and lateral (see Load Direction for clip orientation). The use of mill-certified steel, combined with tested load values, ensures construction professionals will achieve optimal structural performance.
StiffClip® AL (Multi-Purpose Angle) Installation
Four #12 screws are attached to the member through pre-drilled guide holes in the 3” leg. Attach the short (1.5”) leg to the structure/member either utilizing the pre-drilled guide holes or with weld (others engineer attachment through the short leg). If pre-drilled holes are not able to be used, follow fastener manufacturer recommendations for screw placement.
StiffClip® AL (Multi-Purpose Angle) Features
- Guide holes for fast and accurate connections
- Stiffeners for additional strength
- Manufactured from certified 50ksi steel
- No labor spent cutting scrap angle
- Used in a variety of applications
- Extensively tested (reduces liability concerns associated with the use of untested, miscellaneous, untraceable material)
Contact us for more information on light steel framing connectors.
