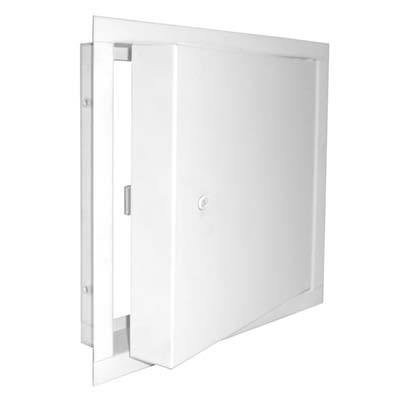

FD2 Series 2-hour Access Door is an oversize two-hour fire-rated, single-leaf panel.  These access doors are the largest net sizes available for a fire-rated access door for use in a wall or ceiling application where control of temperature rise and heat transmission is required. These doors are ideal when installation or removal of equipment is a consideration.

FD2 Series Access Door Specification

• Material: Satin finish galvanized steel or 304 stainless steel
• Frame: 16 ga galvanized steel up to and including 30″ x 48″ or 14 ga steel for larger sizes. Depth 2-1/4″
• Flange: Width-7/8″ up to and including 30″ x 36″ or 1-1/4″ for larger sizes
• Door Panel: 18 ga galvanized steel with 22 ga liner
• Insulation: The door panel contains 1-1/2″ of high temperature insulation material.
• Finishes: Rust inhibitive off-white prime coat or #4 stainless steel finish on exterior surface
• Hinges: The concealed continuous rod hinge is designed to secure the door panel.  The hinge is placed on the long side of the door (” H” Dimension) unless otherwise requested.  Note: Sizes greater than 48″ in a wall position, a continuous piano hinge is standard.
• Panel Closer: The automatic panel closer will close and latch the door from an open position of approximately 90° as required by NFPA 80.
• Latch: The standard factory installed latch is a flush mount 1/4″ allen key.    All fire-rated doors are self-latching and include an interior latch release mechanism allowing the door to be open from the inside for sizes 16″ x 16″ and larger. Interior latch for smaller sizes is available as an option.

Other Sizes Available – Please Order By Rough Opening Size and Specify Wall or Ceiling Application

Contact us for more information on custom sizes and additional locking information.
