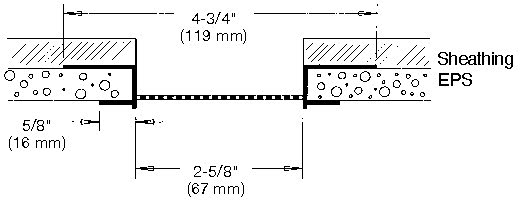

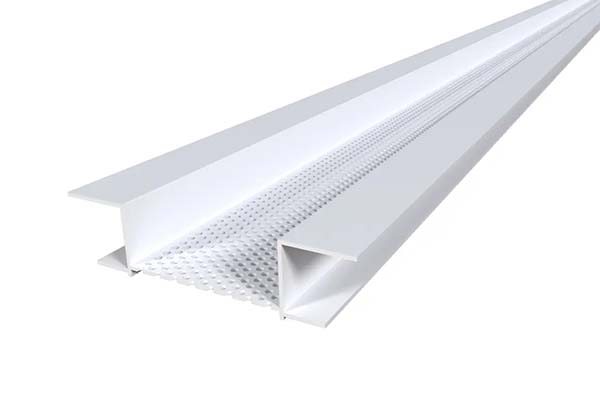

Continuous Soffit Vents are designed with 1″ and 1-1/2″ (25 and 38 mm) EIFS foam board. The vented area is 2-5/8″ (67 mm) wide. Extra-wide mounting flanges make attachment to sheathing easier. The wide flange has 1/8″ (3 mm) stops with striations to provide a positive bond of the base coat and mesh, assuring proper finish thickness. Connector Clips are Included.

Plastic Components manufactures the most complete selection of PVC trims and accessories for EIFS. These PVC trims deliver proven remedies for rustproofing your installation, lowering installed costs, controlling moisture, and improving job quality.

Excellent paint adhesion. Meets ASTM standards D1784, C1063, and D4216.

Continuous Soffit Vents Specifications

Continuous Soffit Vent shall be Plastic Components Inc.  All exterior accessories shall conform to ASTM standards D1784, C1063, and D4216-99. They shall be used where specified by the architect and installed per industry standards.

Contact us for more information on PVC Accessories by Plastic Components.
